Presentation
| Product range | FW-S65Pro Max02 |
| Product type | Microscope |
Sale package
| Pack | Blister |
| Content | Microscope Accessories / Led Lamp / Microscope |
| Product status | New |

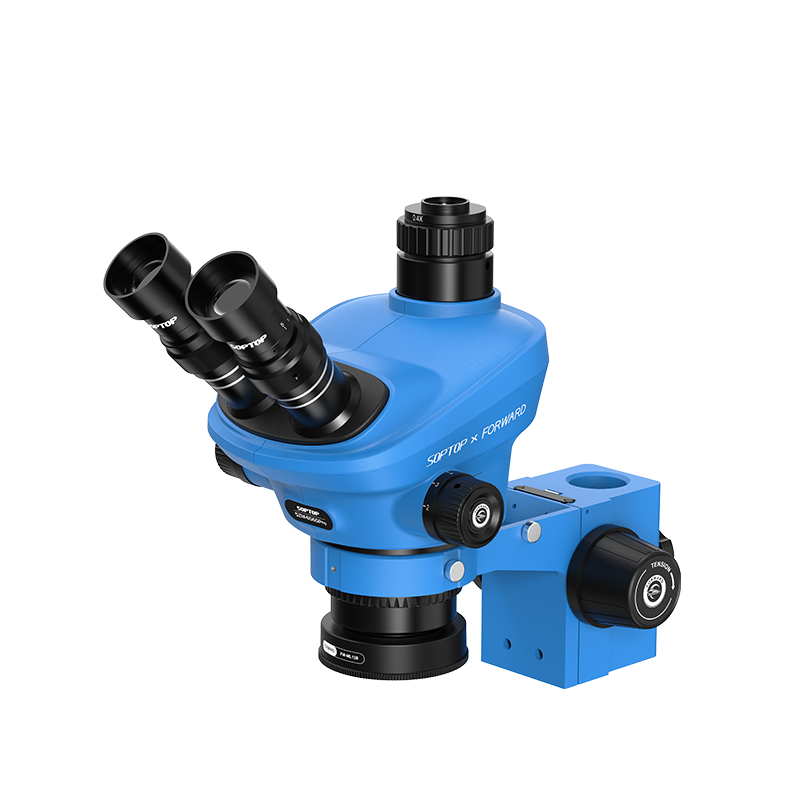

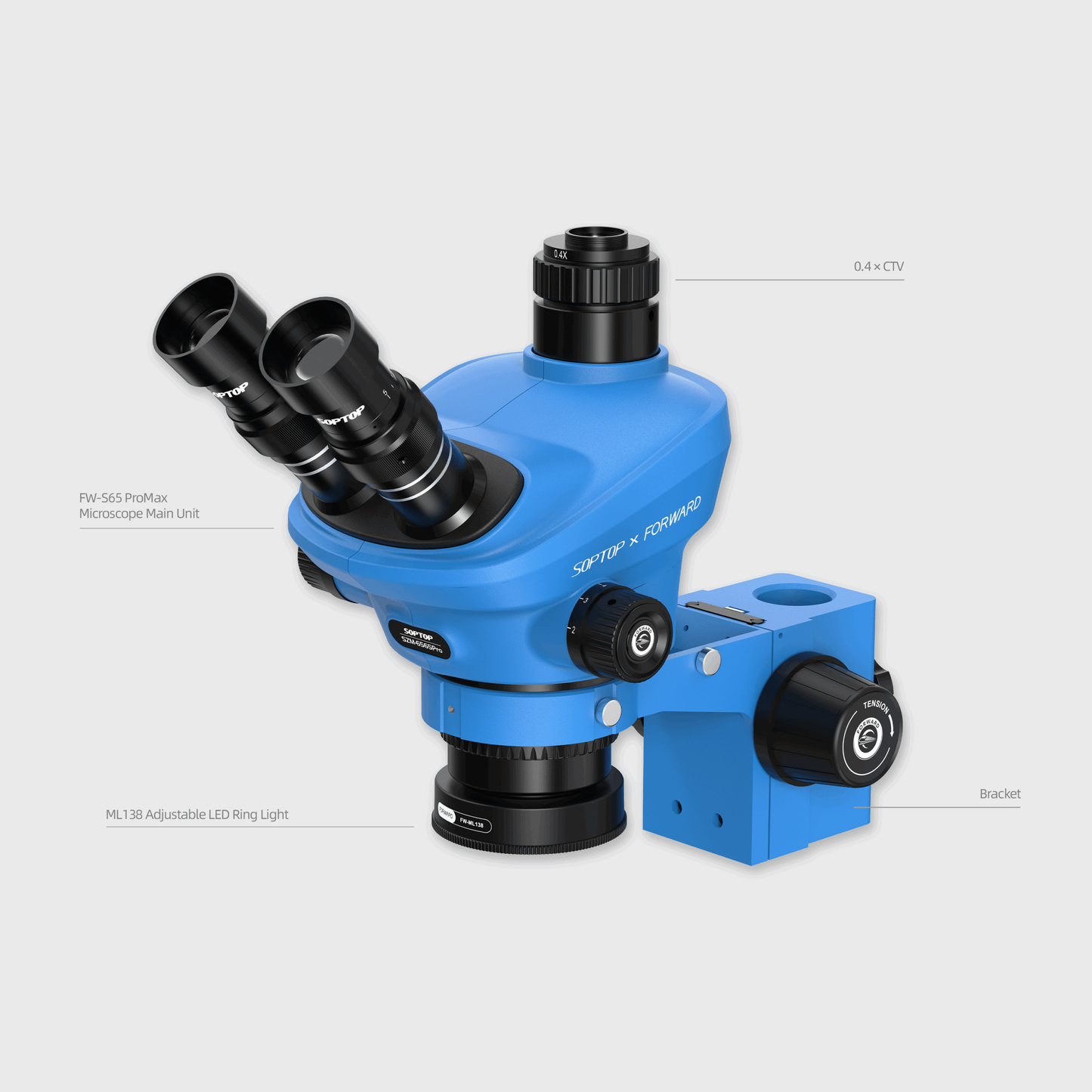

Forward FW-S65Pro Max02 Microscope
The Forward FW-S65Pro Max02 microscope is a professional high-precision instrument, specially designed for complex operations on phone motherboards.
Built from a robust metal structure, this trinocular model offers a versatile magnification range between 6.5x and 65x, allowing observation of the finest details.
which provides exceptional freedom of movement and stability on the workbench, facilitating flexible positioning during soldering or diagnosis processes.
Equipped with adjustable WF10X/23MM eyepieces and a circular LED lighting system ML138, the microscope ensures a clear,
bright image and a generous field of view, being the ideal partner for technicians
who value performance and comfort in daily use.
Features:
- Microscope type: Trinocular (allows attachment of a video camera)
- Magnification: 6.5-65X (adjustable via knob with 8 locking steps)
- Eyepieces: WF10X/23MM with adjustable diopter and 23mm field of view
- Working distance: Standard 100mm
- Stand: R02 robotic arm for maximum flexibility
- Lighting: Adjustable circular LED lamp ML138
- Material: Durable metal
- Recommended use: Motherboard repairs, GSM service, microelectronics
